Industrial Hose
A R hydraulic, Delhi is a renowned Industrial hoses manufacturer in India , It includes Pressure washer , Water Pressure, Fuel Dispensing and Rock Drill Hoses etc. These hoses are widely used for Industrial purpose. As a renowned company of Industrial hoses manufacturer in india, We provide best quality and customization. We not only manufacture and supply Industrial hoses in India, But also export it in several countries like Bangladesh, Sri lanka , Nepal, Kenya, Australia and some part of Africa.

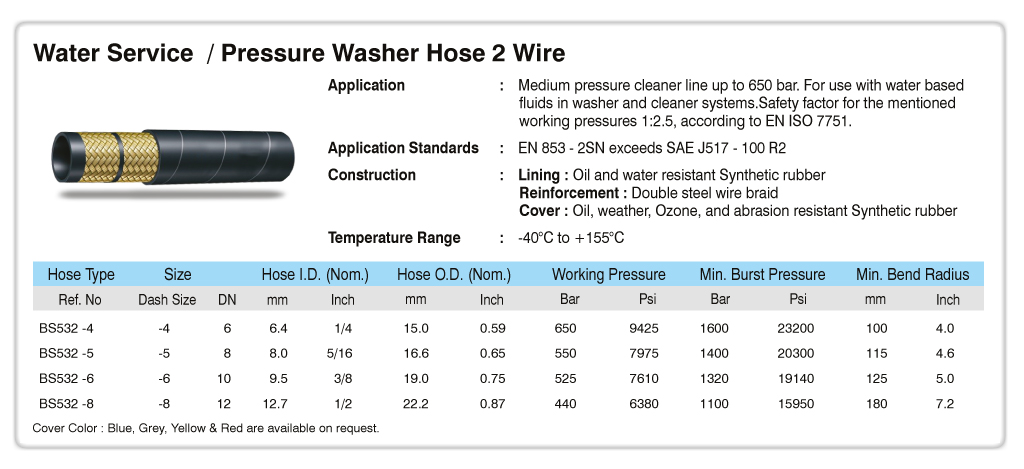

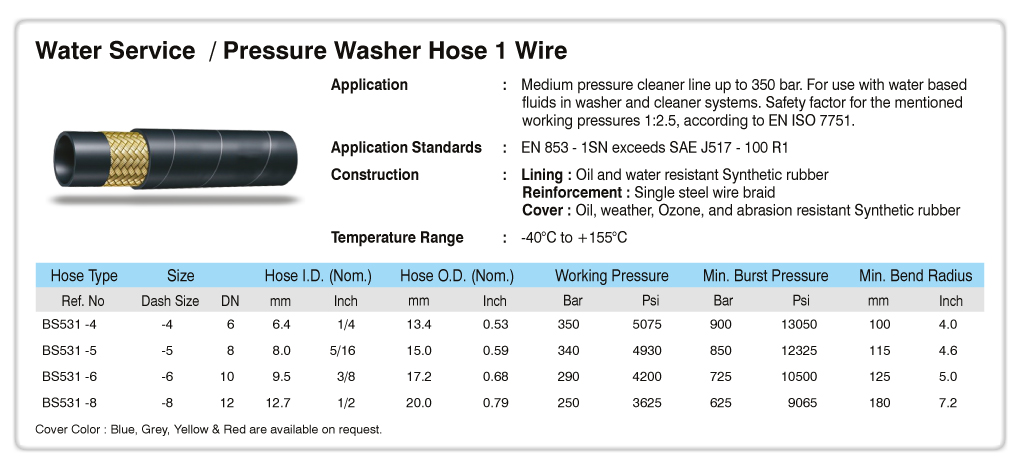

Pressure washer hose
We are renowned and leading - Pressure washer hose manufacturer in India
Water pressure Hose
We are renowned and leading - Water pressure Hose manufacturer in India

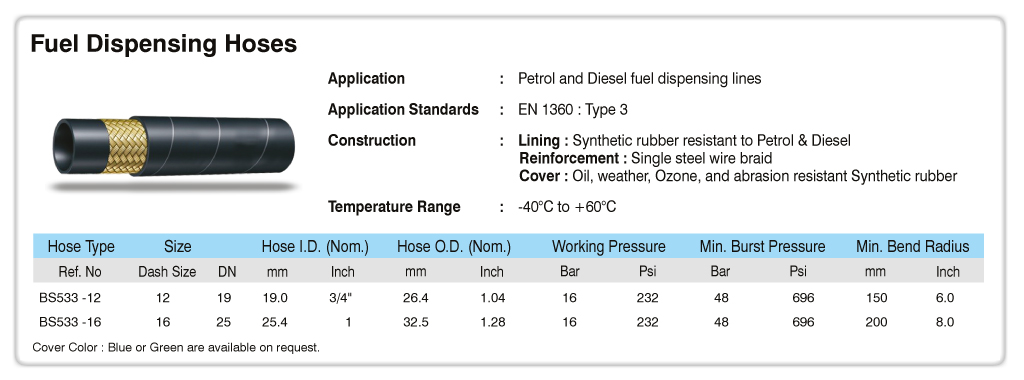

Fuel Dispensing Hose
We are renowned and leading - Fuel Dispensing Hose manufacturer in India

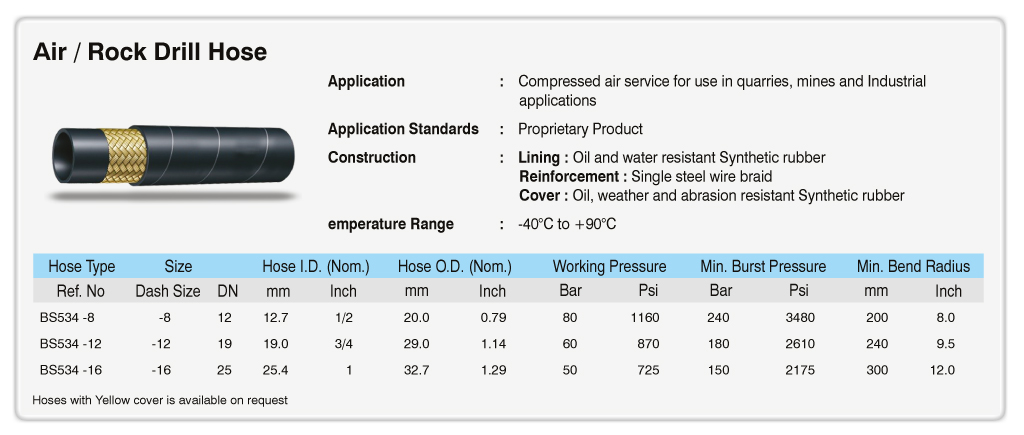

Rock Drill Hose
We are renowned and leading - Rock Drill Hose manufacturer in India

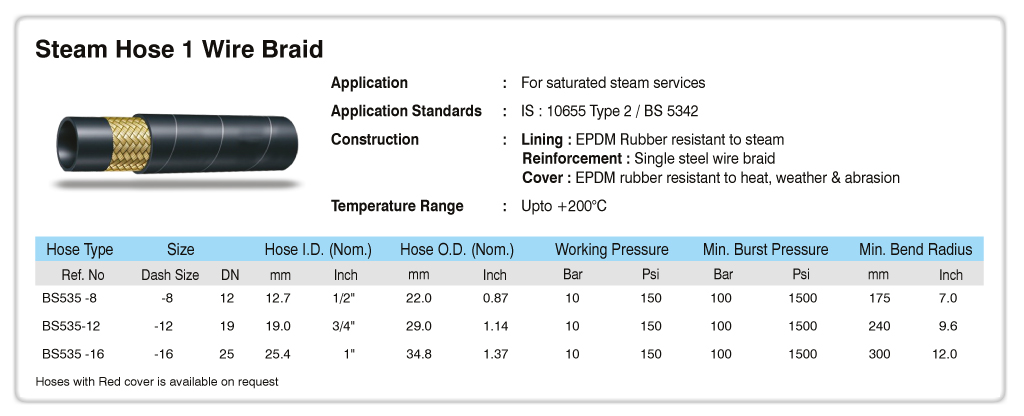

Steam Hose ( 1 Wire Bread )
We are renowned and leading - Steam Hose manufacturer in India ( 1 Wire Bread )

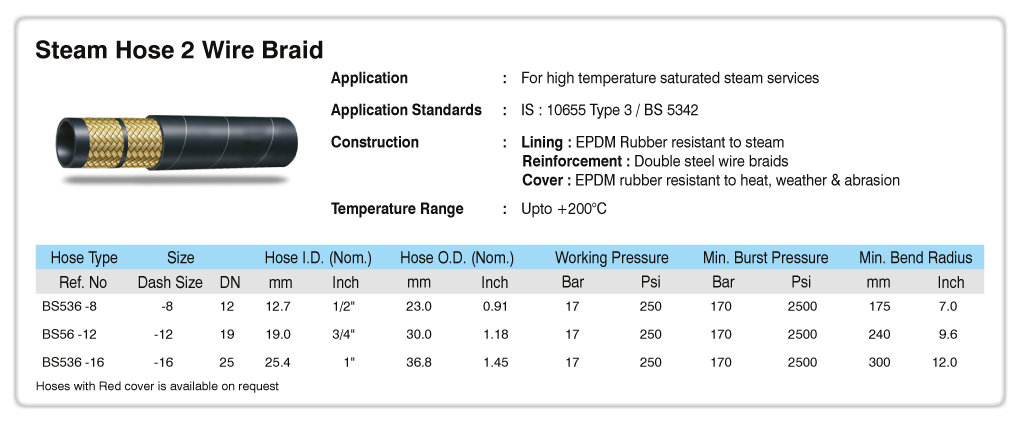

Steam Hose ( 2 Wire Bread )
We are renowned and leading - Steam Hose manufacturer in India ( 2 Wire Bread )

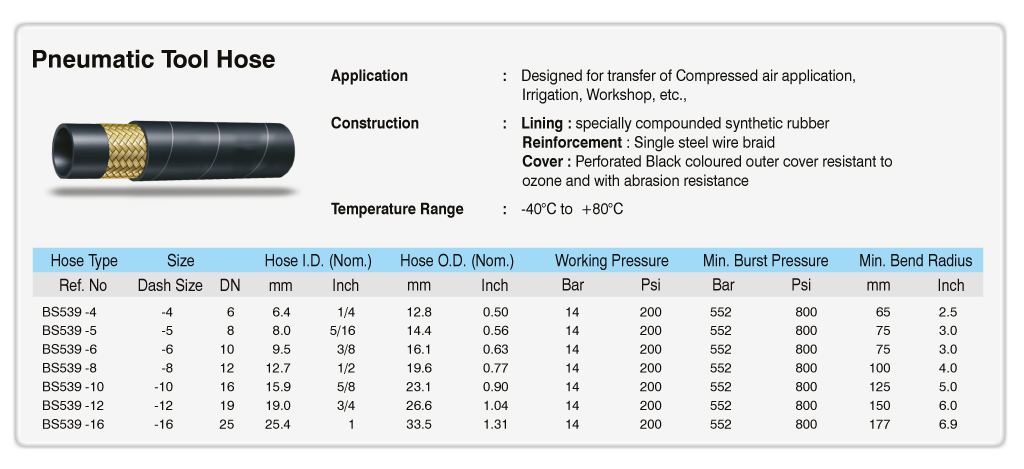

Pneumatic Tools Hose
We are renowned and leading - Pneumatic Tools Hose manufacturer in India

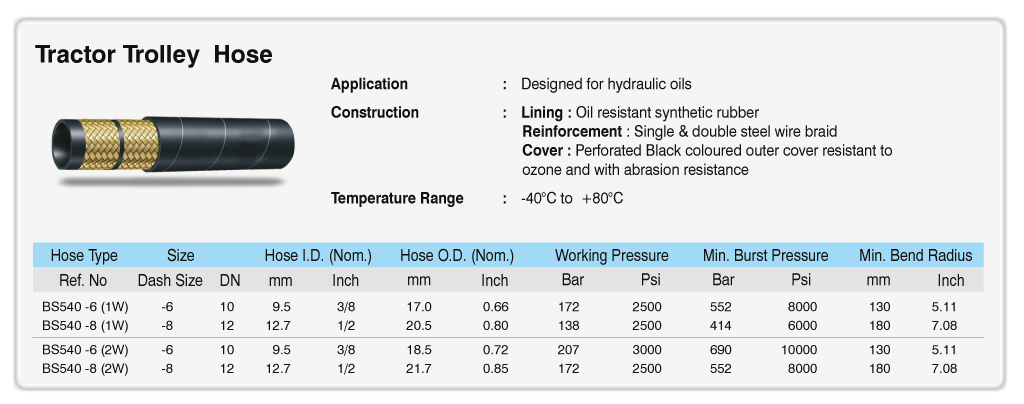

Tractor Trolly Hose
We are renowned and leading - Tractor Trolly Hose manufacturer in India
Super Rock Drill Hose
We are renowned and leading - Super Rock Drill Hose manufacturer in India
(
Construction
Lining :- Oil resistant Synthetic rubber
Reinforcement :- Brass coated high tensile steel wire
Cover :- Natural rubber with excellent ageing & abrasion resistance
Temp.Range :- -40°C to + 80°C
Technical Specifications
| Nominal Bore |
Mean O.D. |
Working Pressure |
Minimum Burst Pressure |
| inch. |
mm. |
inch. |
mm. |
psi. |
Kg /cm². |
psi. |
Kg /cm². |
| 1/2″ |
12.5 |
0.8 |
20.5 |
500 |
36 |
2000 |
140 |
| 3/4″ |
20.0 |
1.1 |
28.5 |
500 |
36 |
2000 |
140 |
| 1″ |
25.0 |
1.4 |
36.0 |
500 |
36 |
2000 |
140 |
Welding Hose
Construction
Lining :- Natural & Synthetic rubber blend
Reinforcement :- Synthetic yarn with high tensile strength.
Cover :- Natural & Synthetic rubber blend with good ageing & abrasion resistance in both red & blue colours
Temp.Range :- -40°C to + 80°C
Technical Specifications
| Nominal Bore |
Mean O.D. |
Working Pressure |
Minimum Burst Pressure |
| inch. |
mm. |
inch. |
mm. |
psi. |
Kg /cm². |
psi. |
Kg /cm². |
| 5/16″ |
8.0 |
0.6 |
15.3 |
250 |
18 |
1020 |
72 |
| 3/8″ |
10.0 |
0.7 |
17.0 |
250 |
18 |
1020 |
7 |
Carbon Free Hose
Construction
Lining :- Light gray, specially compound, oil resistant, synthetic rubber (nitirile)
Reinforcement :- High tenacity synthetic textile yarn
Cover :- Light green, oil & abrasion resistant synthetic rubber (modified nitrile )
Temp.Range :- -40°C to + 100°C
Application
| Furnace Coolant applications in steel Industries and other non- conductive applications with excellent leakage current less than 15 micro Amp. at 6 kv D.C. |
Technical Specifications
| Nominal Bore |
Mean O.D. |
Working Pressure |
Minimum Burst Pressure |
| inch. |
mm. |
inch. |
mm. |
psi. |
Kg /cm². |
psi. |
Kg /cm². |
| 1/2″ |
12.7 |
0.8 |
20.5 |
255 |
18 |
1020 |
72 |
| 3/4″ |
20.0 |
1.2 |
30.5 |
255 |
18 |
1020 |
72 |
| 1″ |
25.4 |
1.5 |
37.2 |
255 |
18 |
1020 |
72 |
| 1 1/4″ |
31.5 |
1.7 |
44.0 |
255 |
18 |
1020 |
72 |
| 1 1/2″ |
38.5 |
2.07 |
52.5 |
255 |
18 |
1020 |
72 |
Chemical Hose
We are renowned and leading - Chemical Hose Sand Blast Hose manufacturer in India
Construction
Lining :- Modified Synthetic Rubber
Reinforcement :- Synthetic yarn with high tensile strength
Cover :- Modified Synthetic Rubber with good ageing & abrasion resistance
Temp.Range :- -40°C to + 70°C
Technical Specifications
| Nominal Bore |
Mean O.D. |
Working Pressure |
Minimum Burst Pressure |
| inch. |
mm. |
inch. |
mm. |
psi. |
Kg /cm². |
psi. |
Kg /cm². |
| 1/2″ |
12.5 |
0.8 |
20.5 |
140 |
10 |
570 |
40 |
| 3/4″ |
20.0 |
1.1 |
28.5 |
140 |
10 |
570 |
40 |
| 1″ |
25.0 |
1.4 |
36.0 |
140 |
10 |
570 |
40 |
| 1 1/4″ |
31.5 |
1.7 |
42.0 |
140 |
10 |
570 |
40 |
| 1 1/2″ |
38.0 |
2.0 |
50.2 |
140 |
10 |
570 |
40 |
Application
For conveying dilute mineral acids, alkalies & aqueous solution of inorganic salts.
Sand Blast Hose
Construction
Lining :- Natural & Synthetic rubber with good abrasion resistant properties
Reinforcement :- Synthetic yarn with high tensile strength & copper flex wire
Cover :- Natural Rubber with good ageing & abrasion resistance
Temp.Range :- -40°C to +70°C
Technical Specifications
| Nominal Bore |
Mean O.D. |
Working Pressure |
Minimum Burst Pressure |
| inch. |
mm. |
inch. |
mm. |
psi. |
Kg /cm². |
psi. |
Kg /cm². |
| 3/4″ |
20.0 |
1.5 |
38.2 |
100 |
7 |
500 |
35 |
| 1″ |
25.0 |
1.8 |
45.0 |
100 |
7 |
500 |
35 |
| 1 1/4″ |
31.5 |
2.1 |
53.0 |
100 |
7 |
500 |
35 |
Application
| Recommended for sand, shot blasting applications and where abrasive materials are carried at high velocity. |
